Metal Core PCB Capability
We are professional on PCB and turnkey PCBA solution, owing to the past over 15 years rich experience of manufacturing.

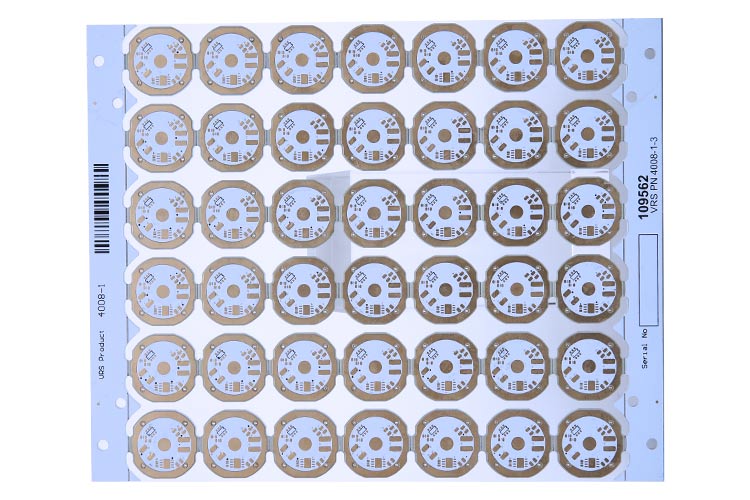

Metal Core PCBs
SCSPCB manufactures Single-sided, Double-sided and Multilayer boards with metal cladding or metal core for improved thermal management. Some of the applications are LED, power conversion, solid state relays, automotive and motor drives. Metals include: aluminum, copper and brass composites.

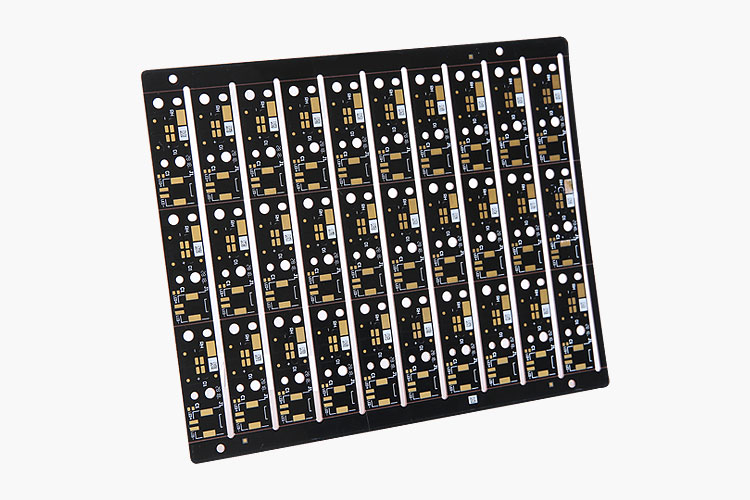

General Capabilities
- Single Layer
- Double Layer
- Aluminum Base
- Copper Base
- Mirror Aluminum
- Composite
- Ceramics
- With Insulated Hole Mcpcb
Surface Finishing
- OSP
- Hot Air Levelling Lead-Free or Sn/Pb
- Chemical Gold (ENIG – ENIPIG – ASIG)
- Electrolitical Gold
- Chemical Silver
- Chemical Tin

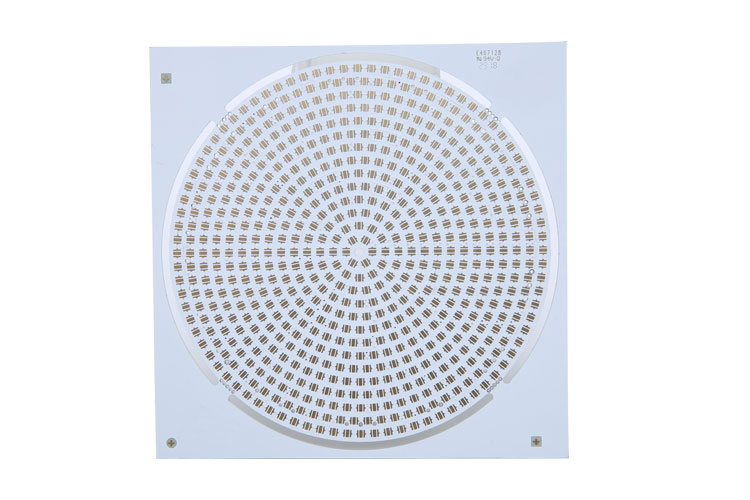

Materials used
- IMS (Insulated Metallic Substrate)
- AL 3003# 5052# 6061#
Metal Thickness
- 0.6 – 0.8 – 1.0 –1.2 – 1.5 – 2.0 – 3.0 – 5.0mm
Base copper thickness
- 18um – 35um – 70um – 105um – 140um – 170um
Thermal Conductivity
- 1.0 – 1.5 – 2.0 – 3.0 W/m.K
Max. board size
- 1500*600mm

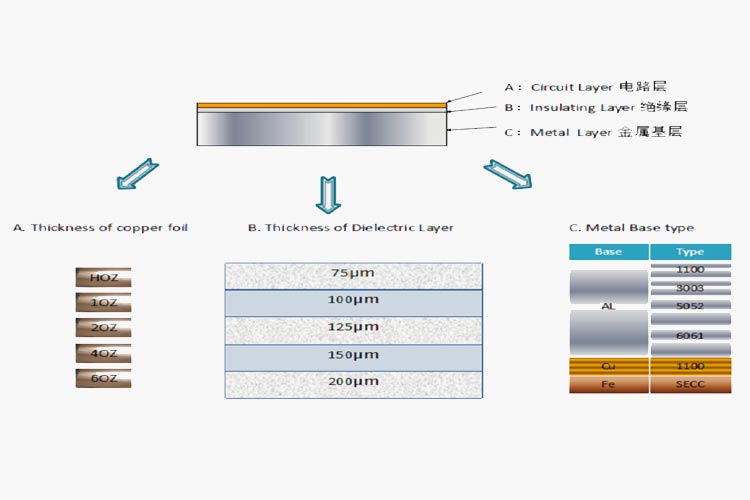

Substrate Structure of Insulated Metal Substrate
