Metal Core PCB

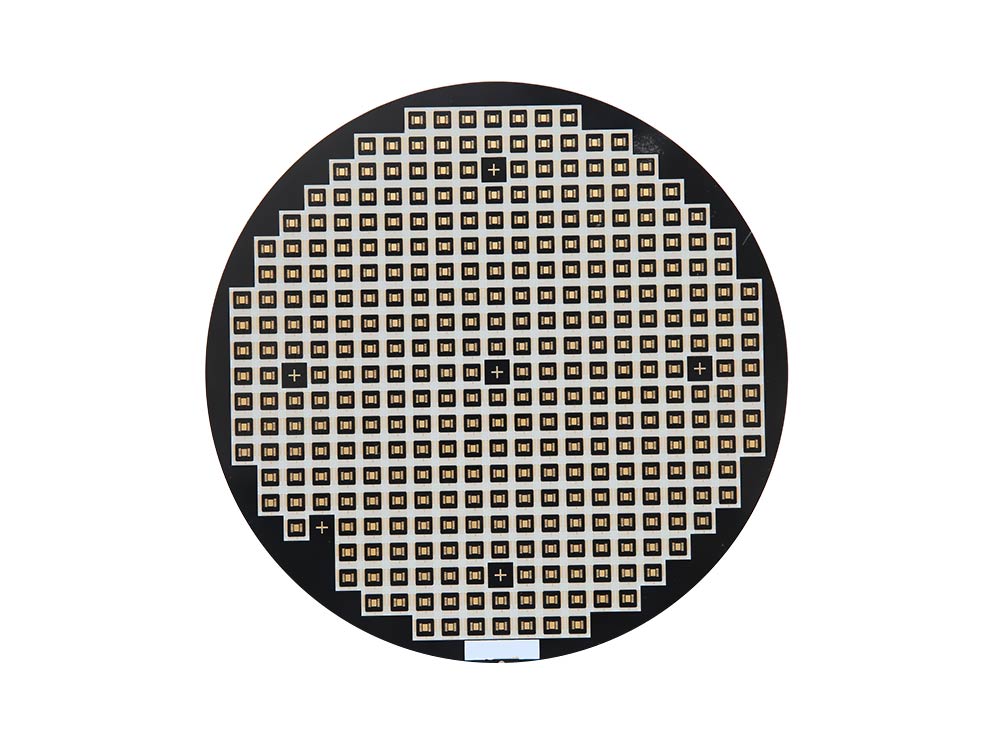

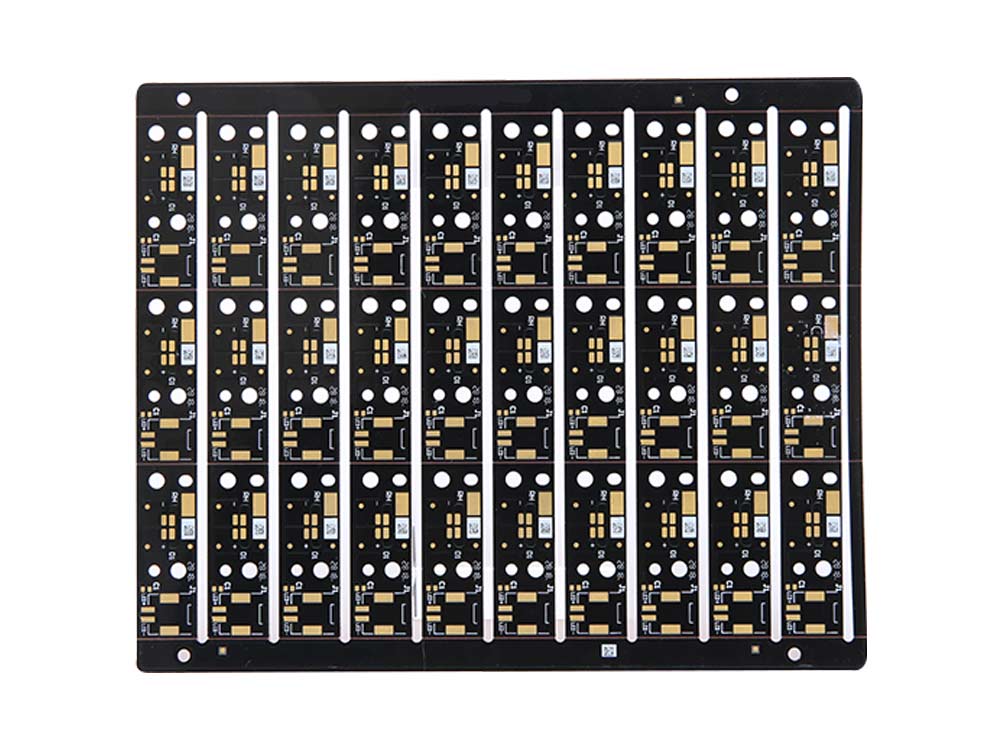

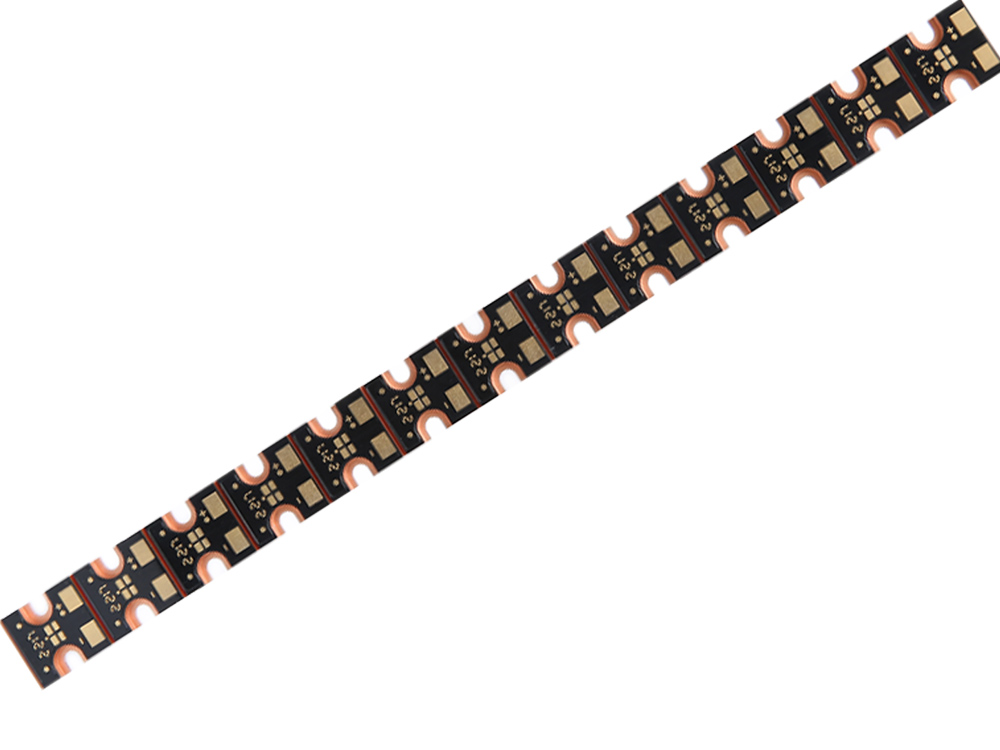

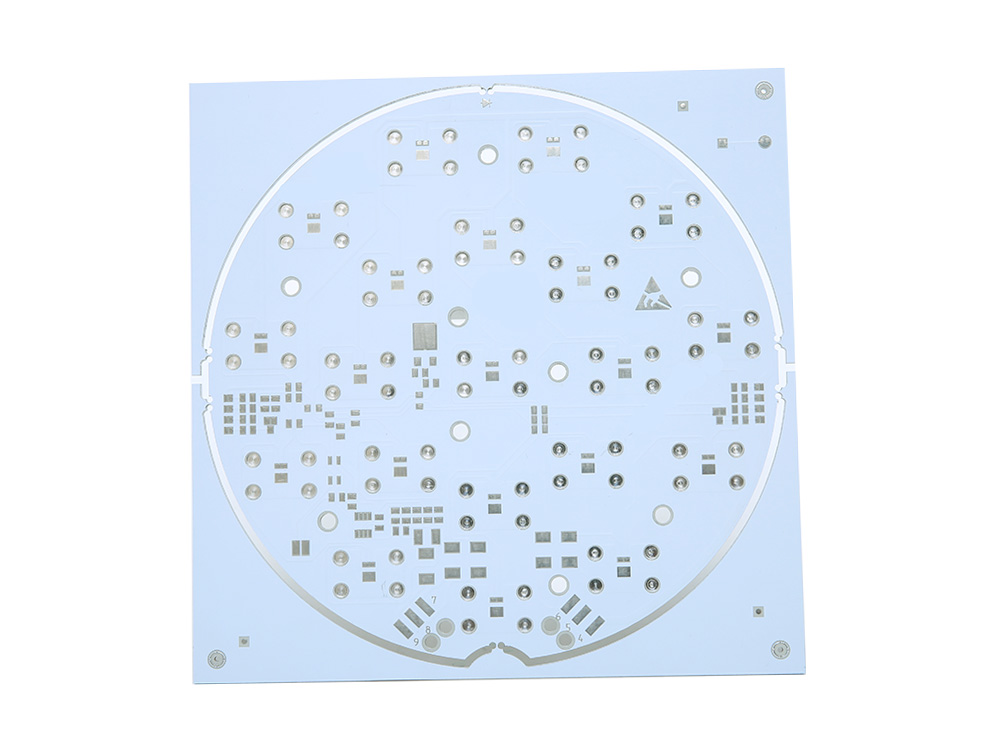

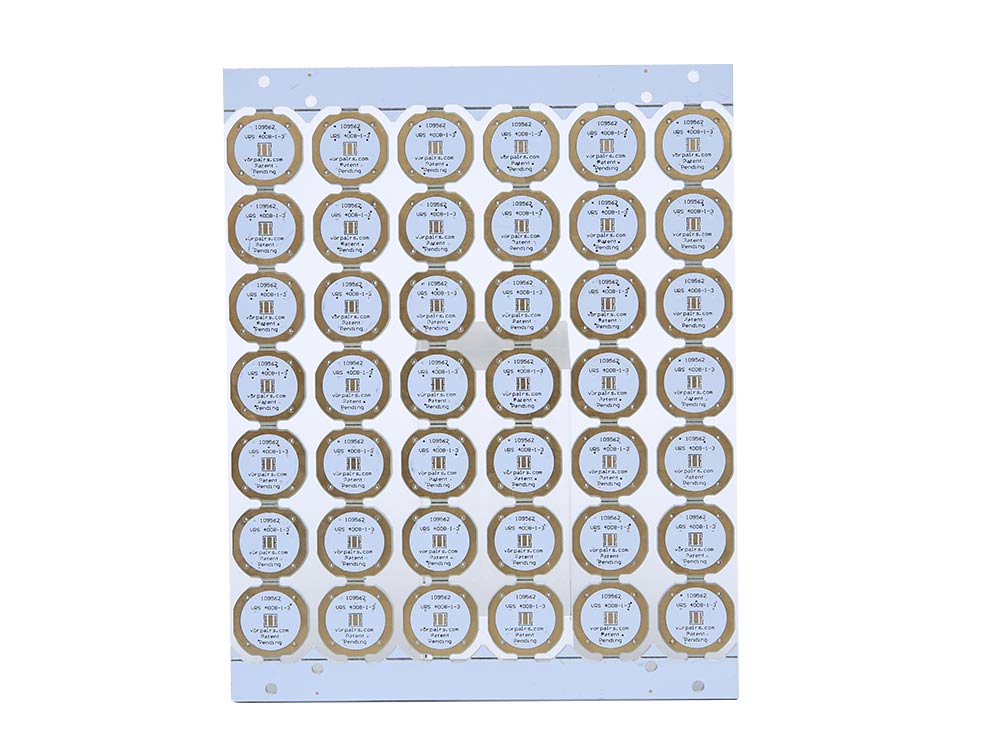

Metal Core PCB : SCSPCB manufactures Single-sided, Double-sided and Multilayer boards with metal cladding or metal core for improved thermal management. Some of the applications are LED, power conversion, solid state relays, automotive and motor drives. Metals include: aluminum, copper and brass composites.

Call to Action View More Details

Share this product

Our Capability

Professional on PCB & turnkey PCBA solution, over 15 years rich experience of manufacturing.

General Capabilities

Single Layer
Double Layer
Aluminum base
Copper base
Mirror aluminum
Composite
Ceramics
with insulated hole mcpcb

Surface Finishing

OSP
Hot Air Levelling Lead Free or Sn/Pb
Chemical Gold (ENIG – ENIPIG – ASIG)
Electrolitical Gold
Chemical Silver
Chemical Tin

Materials Used

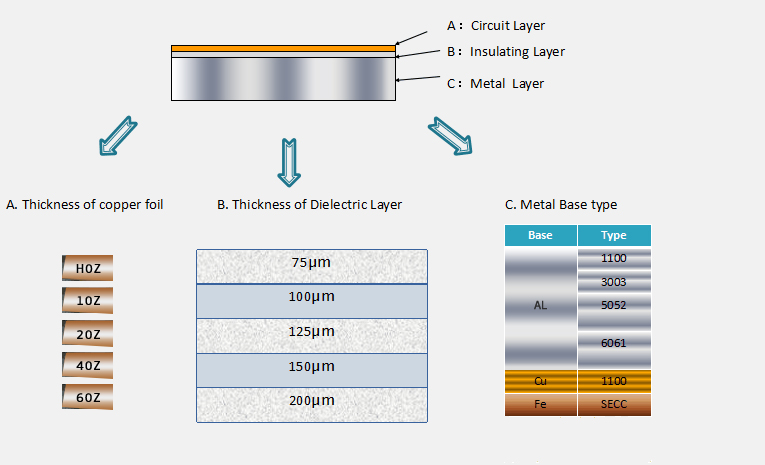

IMS (Insulated Metallic Substrate)

AL 3003# 5052# 6061#

Metal Thickness

0.6 – 0.8 – 1.0 –1.2 – 1.5 – 2.0 – 3.0 – 5.0mm

Base copper thickness

18um – 35um – 70um – 105um – 140um – 170um

Thermal conductivity

1.0 – 1.5 – 2.0 – 3.0 W/m.K

Max.board size

1500*600mm

Technical Capabilities

Download Details

Download Detail Of Rigid PCB
